Illumagic Pixel Refugium LED Bundle

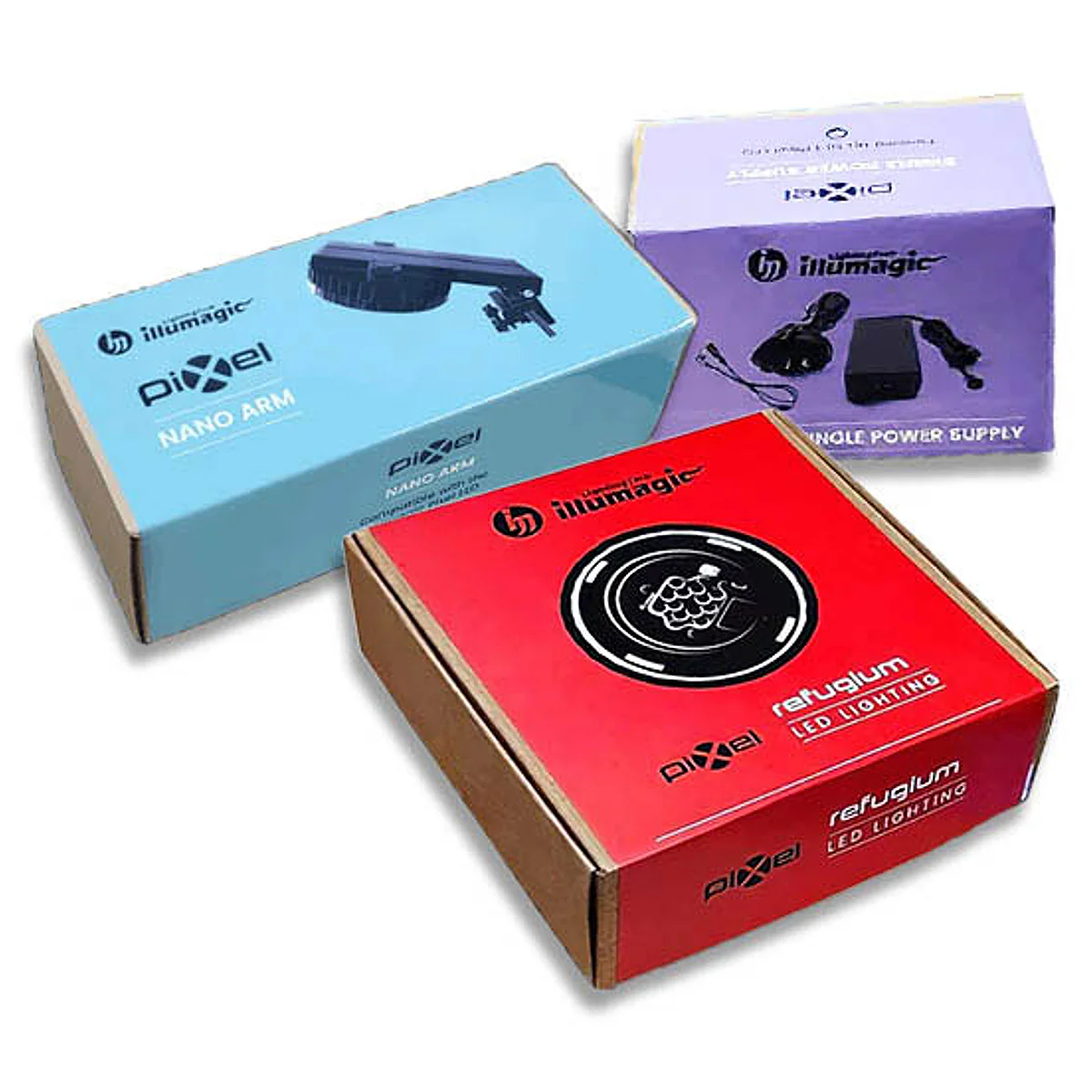

The Dalua Illumagic Pixel Refugium LED Bundle is a plug and play package that provides users the ability to power and mount their Illumagic Pixel LED light. This bundle includes the following items:

• Illumagic Pixel Refugium LED light
• Illumagic Pixel Nano Mounting Arm
• Illumagic Pixel Single Power Supply

---

The Dalua Illumagic Pixel Refugium LED light packs a big punch in a compact design. Featuring the innovative DBR (Diffusion by Refraction) lens technology, the Pixel Refugium ensures optimal light distribution and color accuracy, making it a versatile choice for cultivating macroalgae. The fanless design is virtually silent.

• Compact design and outstanding output
• Virtually silent
• A spectrum LED configuration optimized for cultivating macroalgae
• Features DBR (Diffusion by Refraction) lens system

Optimized Spectra for Diverse Aquatic Environments

The Pixel LED series comes in four distinct spectrums to cater to different aquatic needs:

• Reefer Full Spectrum: Ideal for promoting balanced coral growth and color.
• Fragger Blue Spectrum: Enhances fluorescence and vibrancy in coral.
• Aquascaper Freshwater Spectrum: Tailored for lush aquatic plant growth.
• Refugium: Optimized for cultivating macroalgae.

Compact and Efficient Design

With dimensions of 4.15" by 4.15", the Pixel Refugium provides a light spread of up to 18" squared. Its low power consumption, at a maximum of 25W, ensures efficient illumination without excessive energy use.

Modular Expansion

The modular design allows for easy expansion, with single, dual, or quad power supplies all available. This versatility enables aquarists to tailor their lighting setup to meet their specific tank requirements.

Durability and Warranty

Engineered for longevity, the Pixel comes with a lifetime warranty on its LEDs and lens, as well as a 2-year warranty on all other parts.

Specifications:

• Dimensions: 4.1"L x 4.1"W x 1.0"H
• Weight: 1.6 lbs
• Color: Black
• Power Consumption: up to 25W
• Power Input: 100-240V
• Power Cord Length: 10 ft
• Warranty: Lifetime warranty on LEDs and lenses; 2-year warranty on all other parts

Light Specifications:

• Number of LEDs: 12; 5x 3000K, 2x 4000K, 3x 6500K, 1x Red 730nm, 1x PC Red
• Number of LED Channels: 7
• Lenses/Reflectors: DBR lens
• Recommended Illumination Area: 18" x 18"
• Control: Scheduler/dimmer sold separately; no WiFi and Bluetooth
• Mounting Options: Rear Arm, Rail Mounting System (All sold separately)
• Suggested Mounting Height: 8" - 12"

Items Included:

• 1x Illumagic Pixel Refugium LED light
• 1x Illumagic Pixel Nano Mounting Arm
• 1x Illumagic Pixel Single Power Supply
