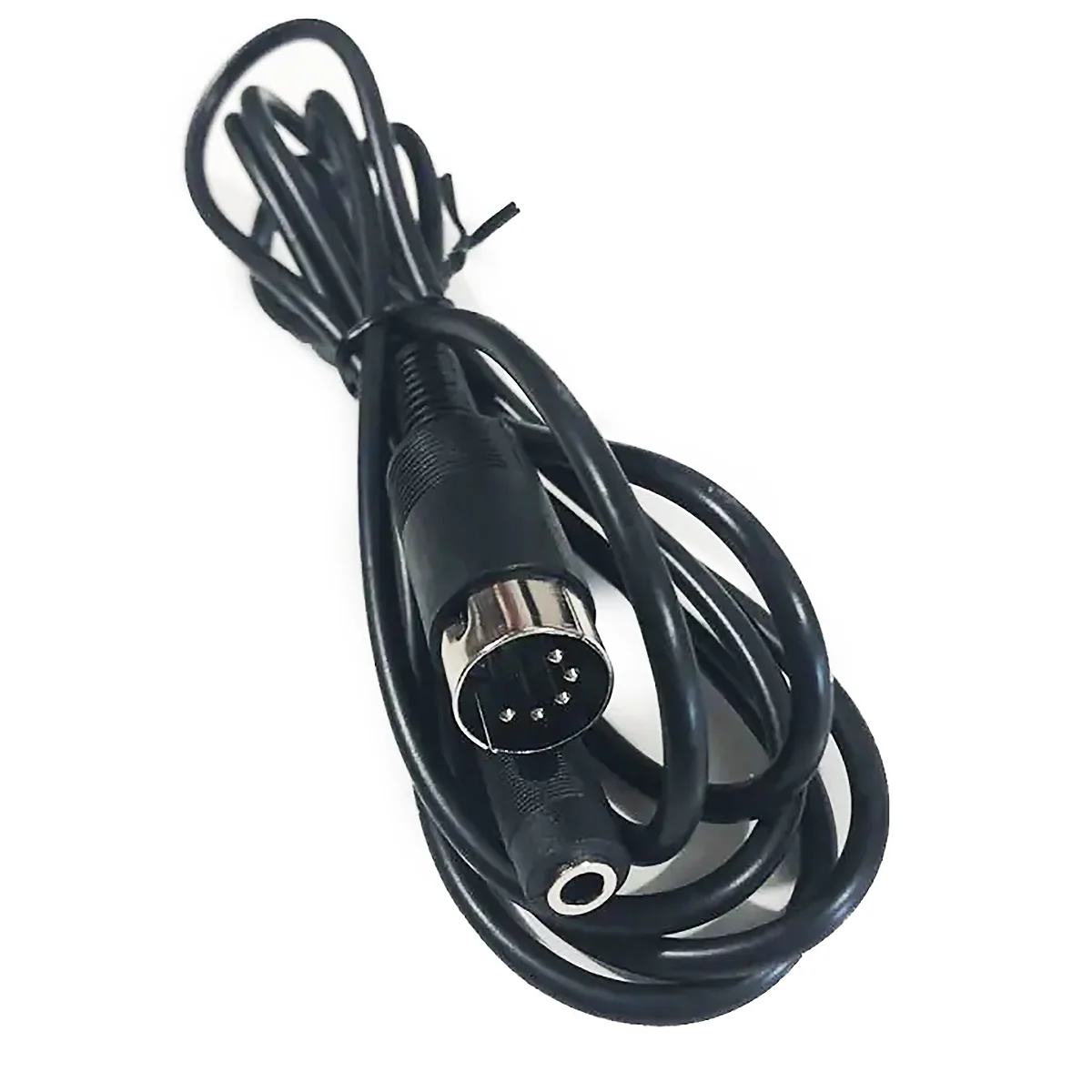

Hydros Tunze 0-10V WaveEngine Adapter Cable

The HYDROS WaveEngine 0-10V Tunze Adapter is required to control Tunze pumps with the WaveEngine.

You will also need a HYDROS WaveEngine 0-10V Quad Cable for this application.

The way it works is as follows:

• Connect the Quad Cable to the WaveEngine
• Connect the Tunze Adapter to the Quad Cable
• Connect the Tunze Adapter to your Tunze pump controller

You can control up to four 0-10V Tunze pumps with the WaveEngine. To do this, you would need the following:

• 1 x HYDROS WaveEngine 0-10V Quad Cable
• 4 x HYDROS WaveEngine 0-10V Tunze Adapter*

*You don't have to use four pumps. If you only had two pumps, you would only need 1 x Quad Cable and 2 x Tunze Adapters. We used four as our example since you can connect a maximum of four pumps with a Quad Cable.

The reason an additional adapter is needed to control Tunze pumps with a WaveEngine is because Tunze pump controllers have a 9-pin jack rather than the more common 3.5 mm stereo jack.

Combine your Tunze pumps with pumps from other brands using the HYDROS WaveEngine for a complete water circulation solution!
