27 Watt High Output UV Sterilizer

IceCap Ultraviolet Light for Clarifying Aquatic Environments

The IceCap UV sterilizer can be used on saltwater, freshwater, and ponds to help control and even eradicate parasites, algae, fungi, bacteria, and protozoa without any harmful chemicals or biocides! When properly installed, maintained, and operated, the high-output UV light in the sterilizer can effectively eliminate free-floating microorganisms.

Features:

• Secure mounting brackets included
• Optional 1/2", 3/4" or 1" barbed fittings or can be plumbed using standard PVC fittings
• Kills most suspended bacteria and viruses in the water column when run at proper flows for sterilization*
• Improve redox balance in the aquarium or pond
• Aids in the control of parasites by reducing numbers and improving the immune function of aquatic life

Three Sizes Available:

• 27 Watt High Output UV Sterilizer
• 40 Watt High Output UV Sterilizer
• 90 Watt High Output UV Sterilizer

*Will not affect beneficial bacterial colonies in filter media and substrate

Model Specification Chart	IC-HOUV-27W	IC-HOUV-40W	IC-HOUV-90W
Wattage	27 Watts	40 Watts	90 Watts
Lamp Length	11.3"	15.75"	35.2"
Current	800mA	800mA	800mA
UVC Output (uW/cm2)	75	105	270
Lamp Life (hrs)	10000	10000	10000
Inlet Size	2"	2"	2"
Output Size	2"	2"	2"
Max Flow Rate - Marine	600gph	1000gph	3000gph
Max Flow Rate - Freshwater	1500gph	3000gph	12000gph
For Marine Water Volumes up to	140gal	400gal	1000gal
For Freshwater Water Volumes up to	1300gal	3000gal	12000gal

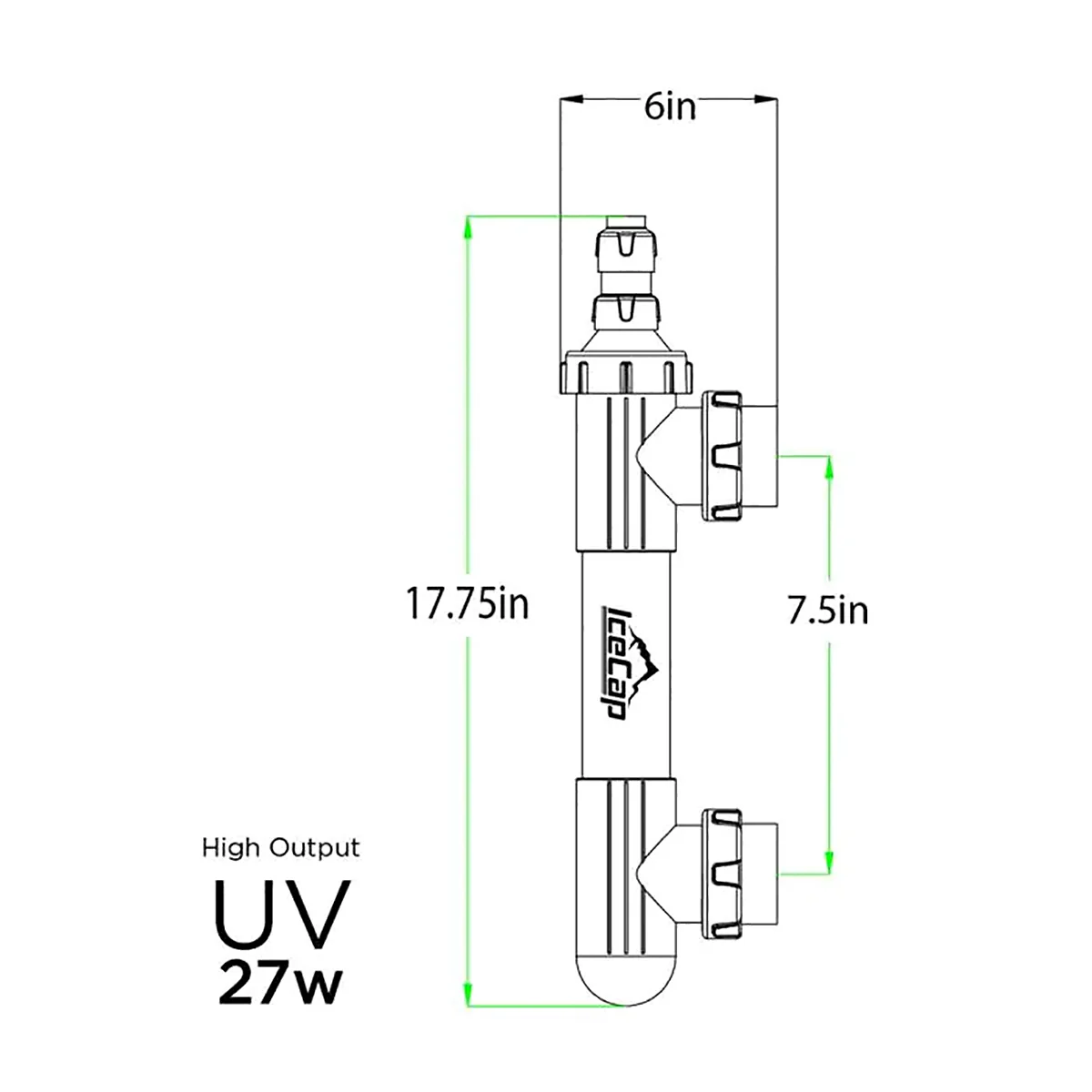

Dimensions (LxWxH) Not including power cord or barb fittings	17.75" x 5.25" x 6"	22" x 5.25" x 6"	43" x 5.25" x 6"

Installation Instructions:

See how to properly install and run the IceCap UV Sterilizer: IceCap UV Sterilizer Users Guide
