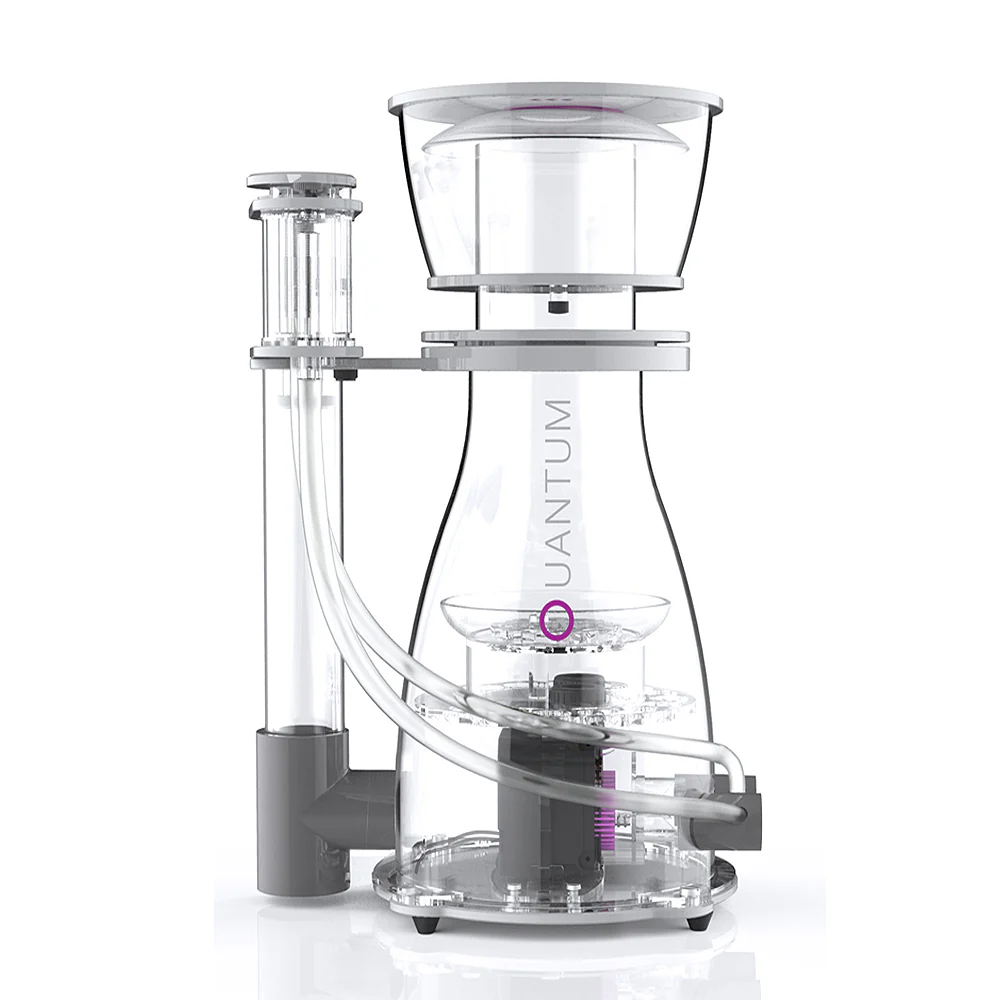

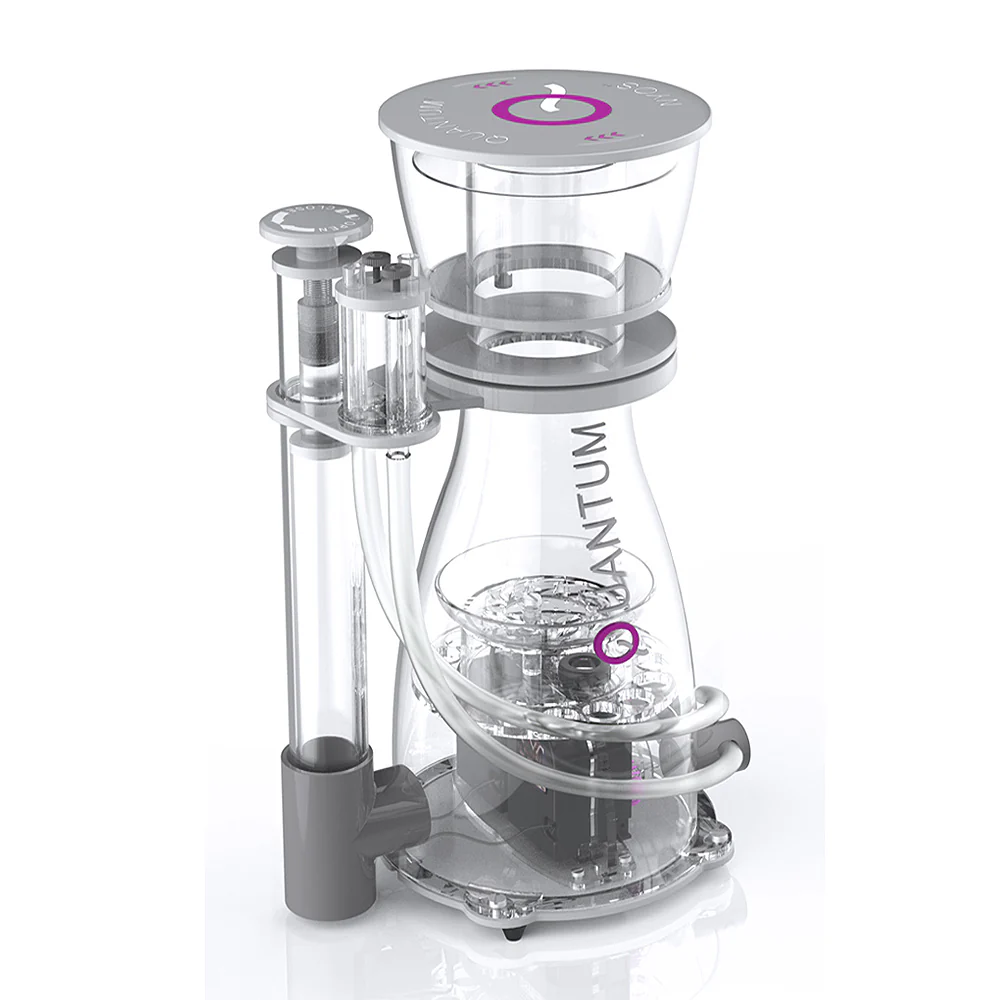

The NYOS Quantum 300 is an efficient and silent high performance skimmer for tanks up to 1000 gallons.

Features:

Extreme Performance with Dual Pumps
Very Quiet Operation
Anti-Shake Silent Silicone Feet
Adjust Air & Water Levels Individually
Titanium Grade 2 Screws
Precise Water Level Micro-Adjustments
Low Power Consumption
Plug & Play - Easy Maintenance

Recommended For Aquariums Up To:

Heavy Bioload (Most Common Use) - 250 Gallons
Medium Bioload - 600 Gallons
Light Bioload - 1000 Gallons

Dimensions & Specifications:

Footprint - 13.4" x 16.4"
Height - 26"
2x Quantum 5.0 Pump
Power Consumption - 44W

The New NYOS Hybrid Wheel

The heart of every skimmer is its propulsion. That is why we have developed a new high-performance drive for the Quantum®: the Hybrid Wheel. This especially precisely manufactured impeller, built with superlight materials, combines the advantages of a needle wheel and a lattice wheel. The Hybrid Wheel is characterised by its lattice-shaped base, on which numerous very narrow needles are mounted. This structure ensures that countless extremely fine micro air bubbles are generated. The greatly reduced weight and the high precision lead to lower maintenance and at the same time low energy consumption.

NYOS Clear-View Reactor

The hybrid wheel needs a pump chamber that is specially adapted to it. That is why we have developed the NYOS® Clear-View Reactor. The Clear-View Reactor is a transparent, performance-optimised large-volume reaction chamber in which the water-air mixture is generated. In combination with the hybrid wheel and the adapted venturi nozzle, it produces an extreme air performance with an optimum air-water ratio. Its transparency means that any foreign bodies can be identified easily. At the same time it is possible to see the huge performance of the pump in operation. Stylish and practical!

The NYOS Twister

Extreme air performance and the finest bubbles are one thing. But in order to achieve optimum skimming, the bubbles that are generated must also remain in contact with the water for as long as possible. That is why, in addition to our normal bubble plate, we have developed the saw-blade shaped Twister. This gives the bubbles an additional spin and swirls them further in a vortex. This greatly increases the contact time of the air bubbles in the water column.

Combination of Form & Function: The Sinus Design

Water doesn’t like corners. That is why we have developed a flow-optimised, protected double-S form. In this so-called Sinus design the air bubbles can rise without hindrance and completely free, ergonomically so to speak, without the formation of poor-flow zones at disruptive corners.

Optimised, Variable Setting Options

Each aquarium is different. That is why NYOS Quantum can be adapted individually to all aquarium conditions: water quantity and air quantity can be set separately and independently of each other. An approximate setting of the water level is achieved by means of the water setting pipe, while the especially precise micro-adjustment screw, which is also included, allows an additional fine-tuning of the water level.

Compact Construction

NYOS Quantum does not use any externally mounted bulky pumps and it is why our skimmers are able to be dismantled completely.
