SAFETY MADE SIMPLE
The ATK (Automatic Top Off Kit) is a simple, standalone, and complete solution for replacing water lost to evaporation.

The new aquarium hobbyist has many challenges, but none is more annoying than the chore of adding water, every day, to make up for that lost to evaporation (a.k.a. topping off/up). This alone usually makes the automatic top-off (ATO) device the first piece of automation equipment purchased.

The ironic flip side of this decision is that a faulty ATO device is one of the leading reasons for catastrophic aquarium failure, or even worse, flooding of the house or business.

Not all ATO devices are created equal. Sadly, many ATO on the market are made with cheap components, have very little protection against these catastrophes, and are just a nightmare to assemble and install correctly.

An ATO does not have to be both a blessing and a curse!

We designed our ATK – Automatic Top-Off Kit to not only be super-simple to install and use, but it is unique in the market as an ATO device with three layers of redundant monitoring and water-level control. The ATK does the work for you, while at the same time protecting your tank and your home.

THREE LEVELS OF SAFETY PREVENT OVER-RUNS

1. Backup Optical Sensor
Should the main water level sensor fail, this second optical sensor is the backup. If water continues past the primary sensor, and then covers this one, the pump will be shut off and an alarm will sound.

2. IQ-Fill – Water run-time intelligence
If both the primary water sensor AND the backup optical sensor fail, the algorithm used in the ATK will not add more than double the learned water amount. It will shut itself off and sound an alarm.

3. Physical float valve – the final backstop
If for some reason all the electronic failsafes do not work, and water is continuing to be sent to the aquarium, the mechanical float valve is the safety device that will stop the water and prevent death to your aquarium and water on your floor.

Apex owners get even more value
If you already have an Apex of ANY kind, setting up the ATK is still super-simple. Just plug in all the components, attach it to your Apex via the AquaBus cable, and then run the set up task inside Apex Fusion. With the ATK connected to an Apex, you get the added benefit of having email/text/iOS alerts if there is an emergency and you can integrate its operation into other functions.

IQ-Fill (standalone mode only)
IQ-Fill is an intelligent and learning algorithm that, ongoing, monitors and records how much water your aquarium needs for each fill, and then calculates a maximum time your pump should run. By doing this, it dramatically reduces the chance that your pump would continue to add large volumes of water to the tank before you could realize it and fix the situation

Back-up mechanical float valve
While a float valve mechanism itself is certainly no high-tech solution, it is exactly what you want to have in place should all this high-tech gear decide to fail. The float valve on the ATK will never see any action unless for some reason the electronics continued to add water to the tank despite the optical sensors being submerged and the IQ-Fill algorithm limiting run times. For those small systems (usually small all-in-one aquariums) where the float valve will not fit, you can remove the float valve from the bracket and you still will have two levels of safety backup.

PMUP – the most powerful pump provided with any ATO!
The PMUP is a 24V utility pump that is perfect for moving water from your RODI reservoir to the aquarium. This pump has a vertical design that easily drops into most water jugs or ATO reservoirs. The best part about the PMUP is that it has the the power to deliver water to your tank even from remotely located water reservoirs. Most other pumps that come with an ATO will barely pump six feet, the PMUP though has the ability to pump over 14’ vertically so it can even pump water up from a lower-floor or basement water storage location!

THE ATK INCLUDES:

FMM – Fluid Monitoring Module (runs standalone)
Pre-assembled water level mechanism with:

Magnetic acrylic mount (works up to 1/4″ glass/acrylic)
Two (2) optical water level sensors
Float valve
90 degree tubing fitting

PMUPv2 ATO Pump
24V 36W power supply
4m of orange RO tubing
3/8″ -> 1/4″ push-fit adapter fitting
1/4″ -> 1/4″ push-fit siphon break
Set-screw for non-float-valve applications

PRODUCT VIDEO

Auto Top Off Systems

ATK V2 Automatic Top Off Kit

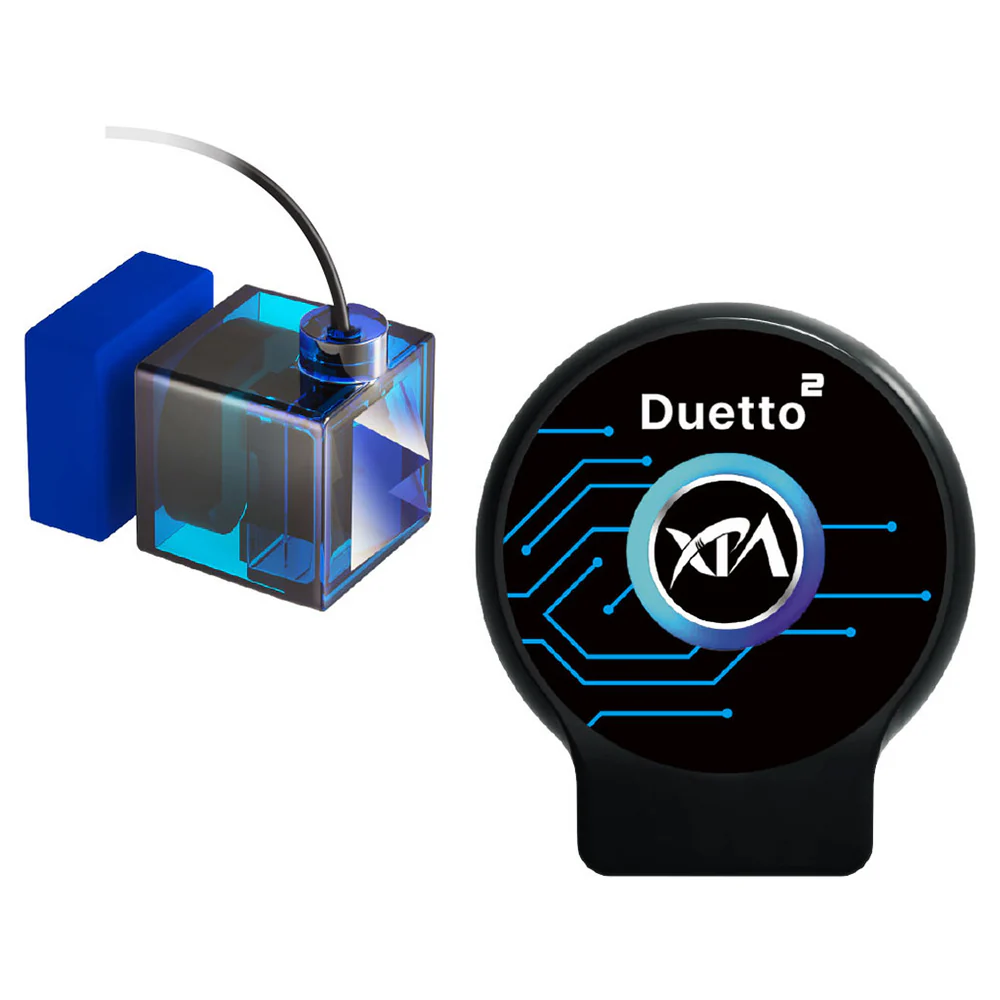

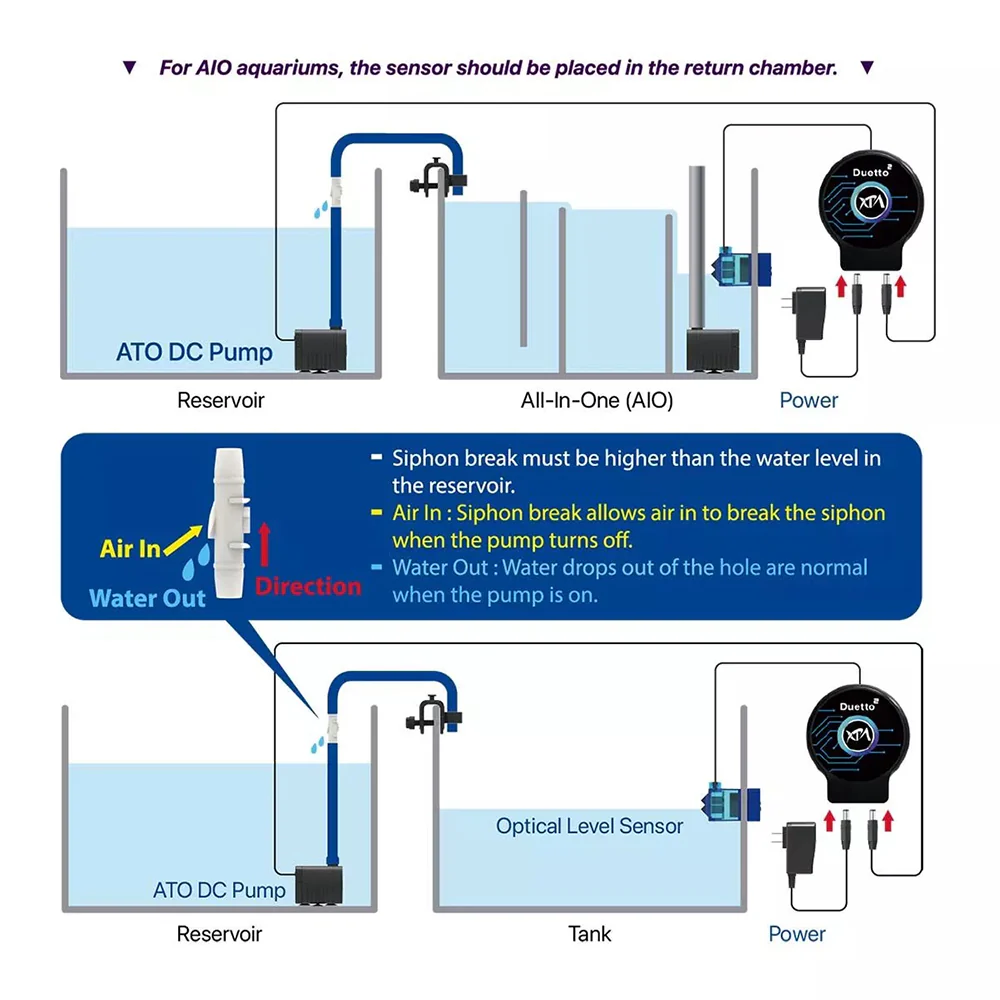

Duetto2 Dual-Sensor ATO Auto Top Off System

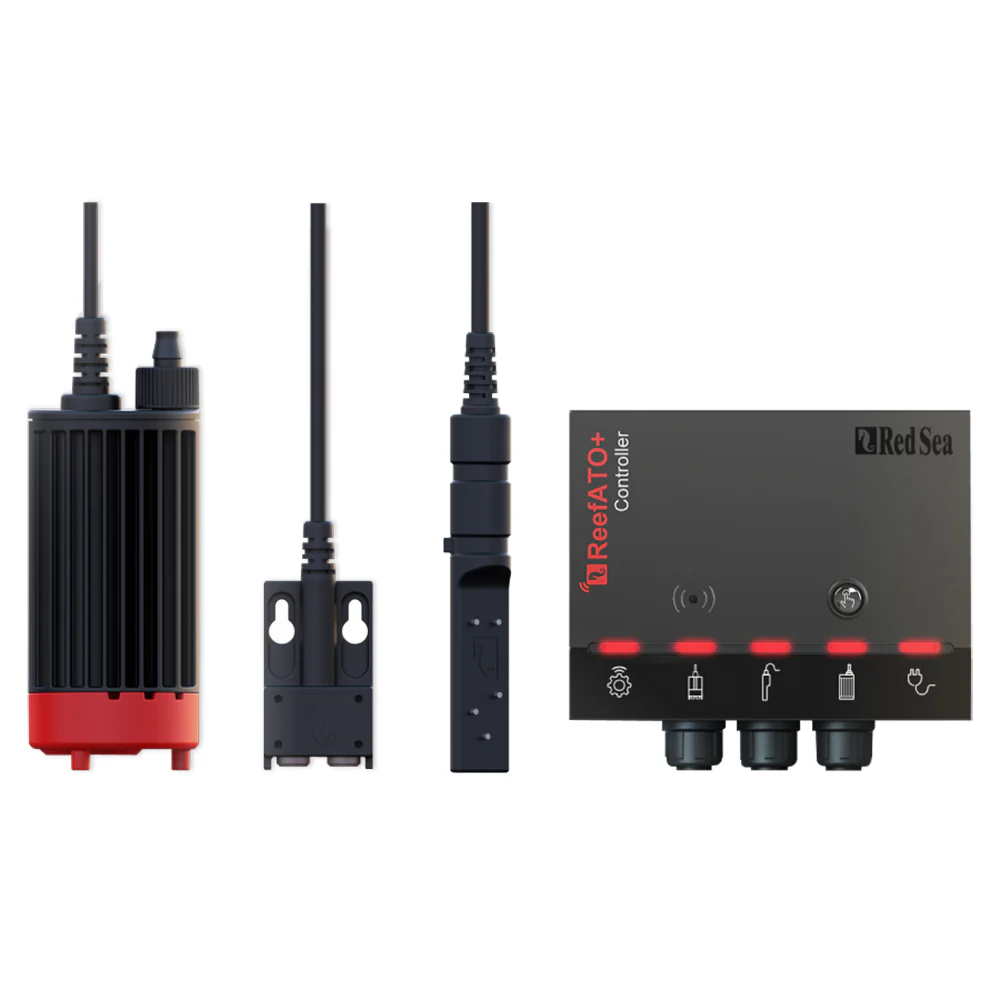

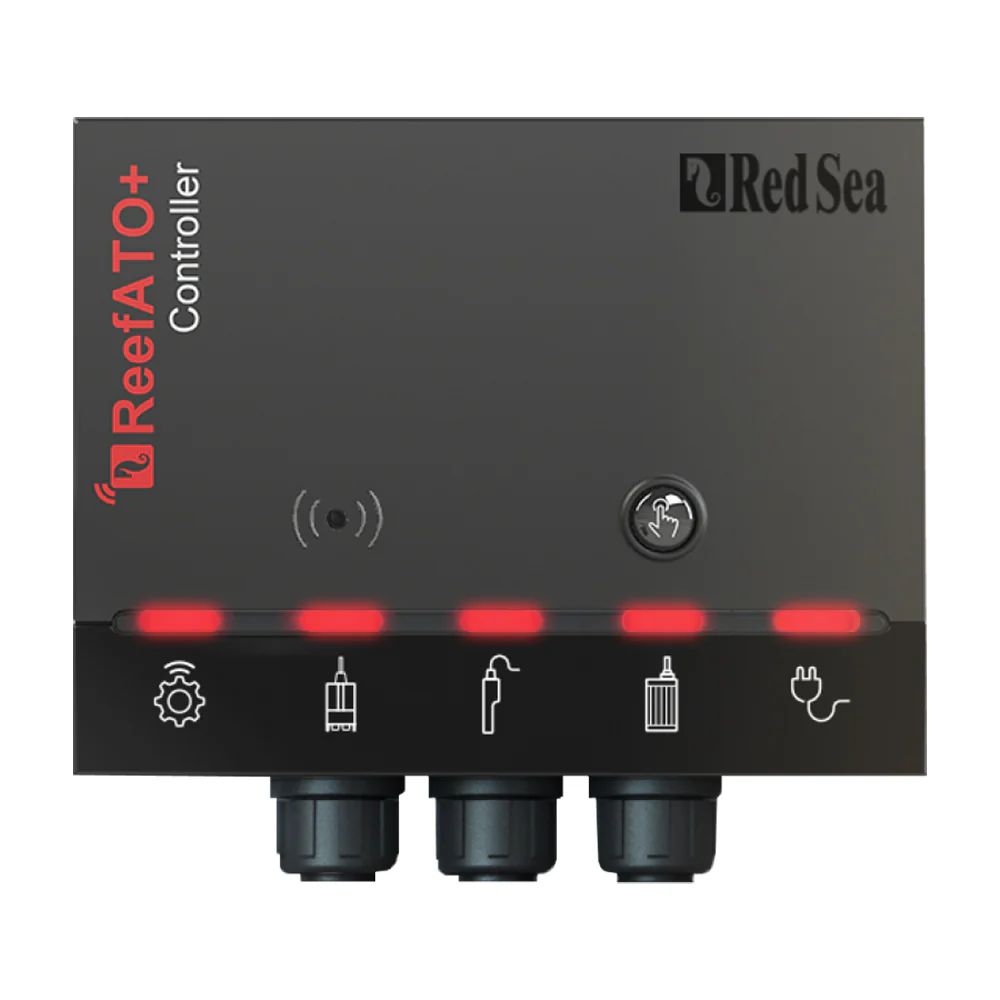

ReefATO+ Auto Top Off System

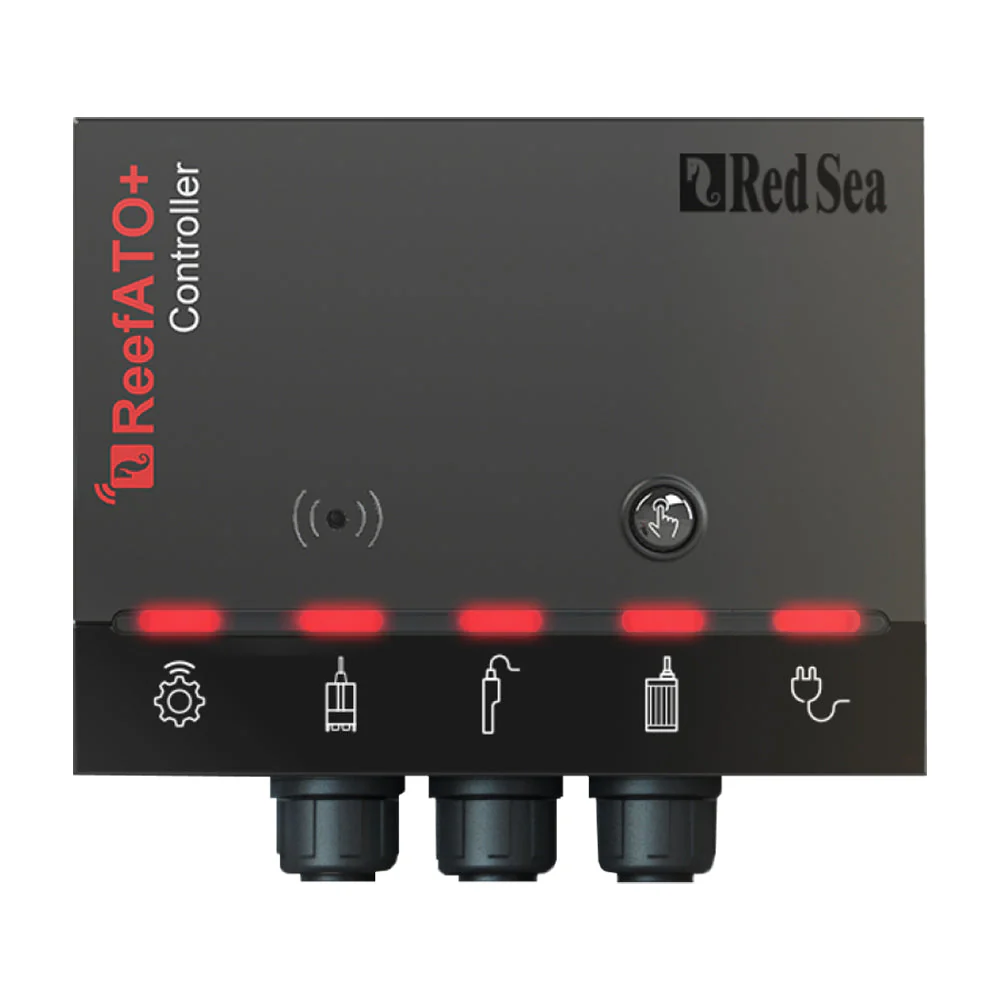

ReefATO+ Upgrade Kit for Reefer Aquariums

Osmolator 3 Auto Top Off

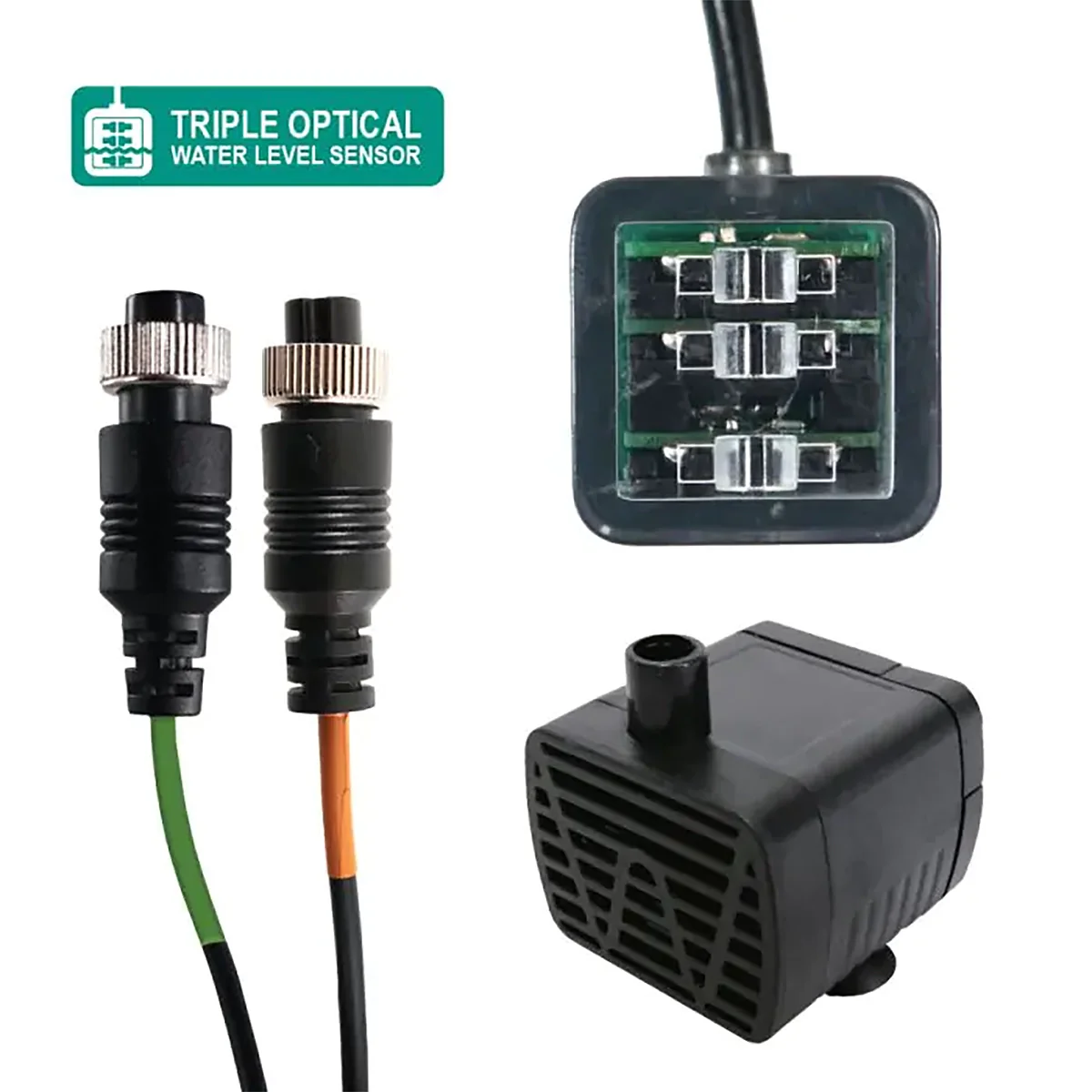

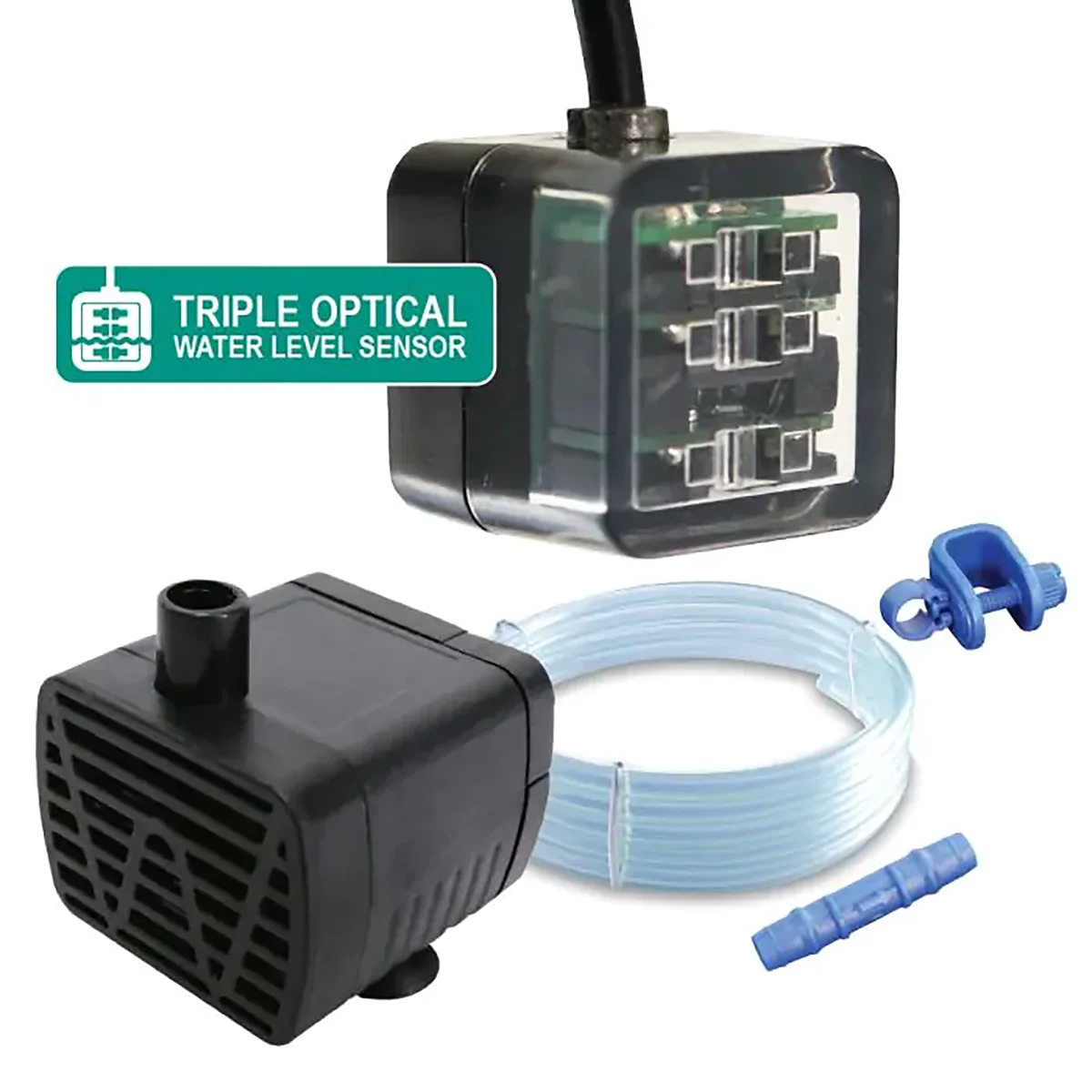

Hydros Triple Optical ATO Kit (Requires Hydros Controller)

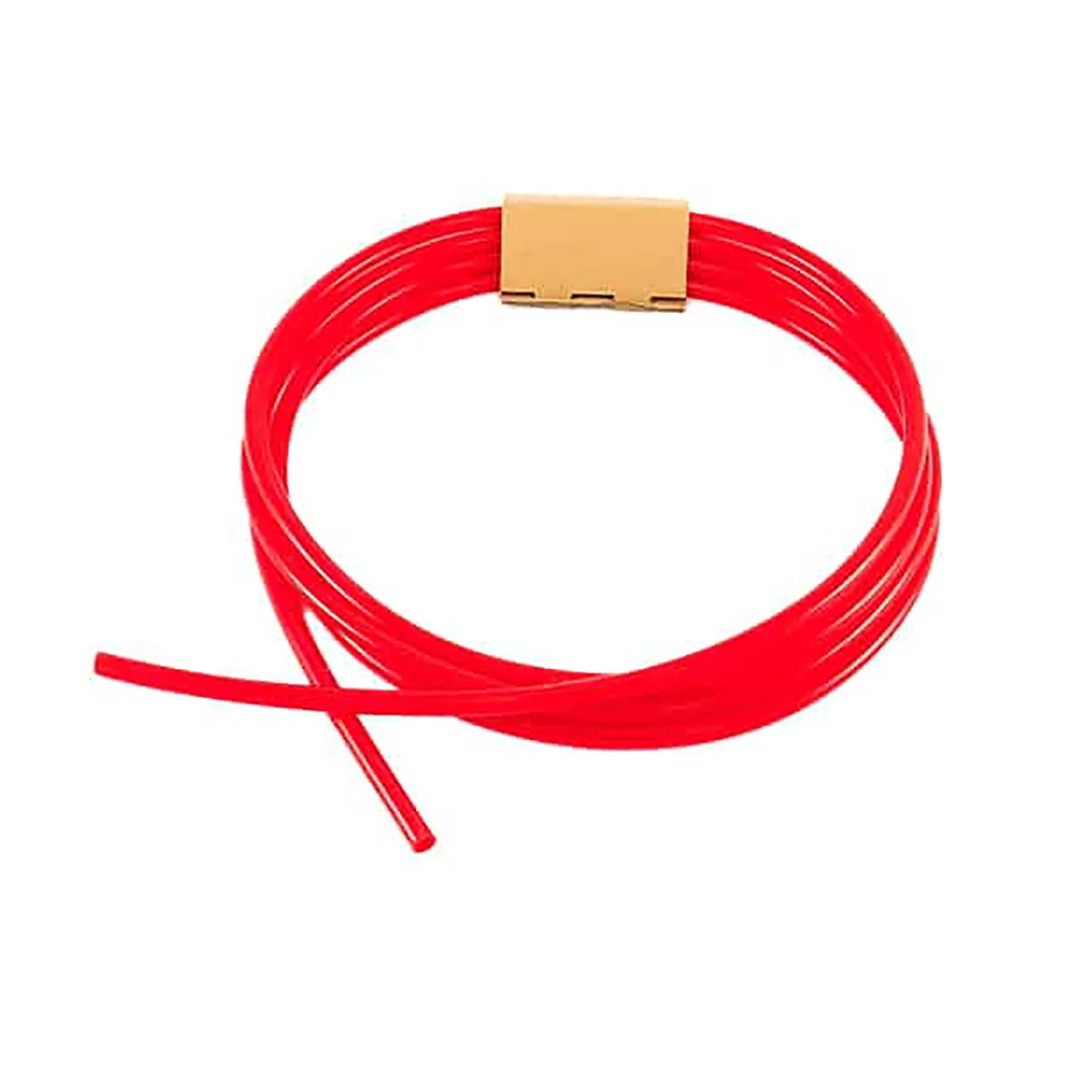

5 Meter ATO Silicone Tubing R35626

Osmolator 3 Nano Auto Top Off

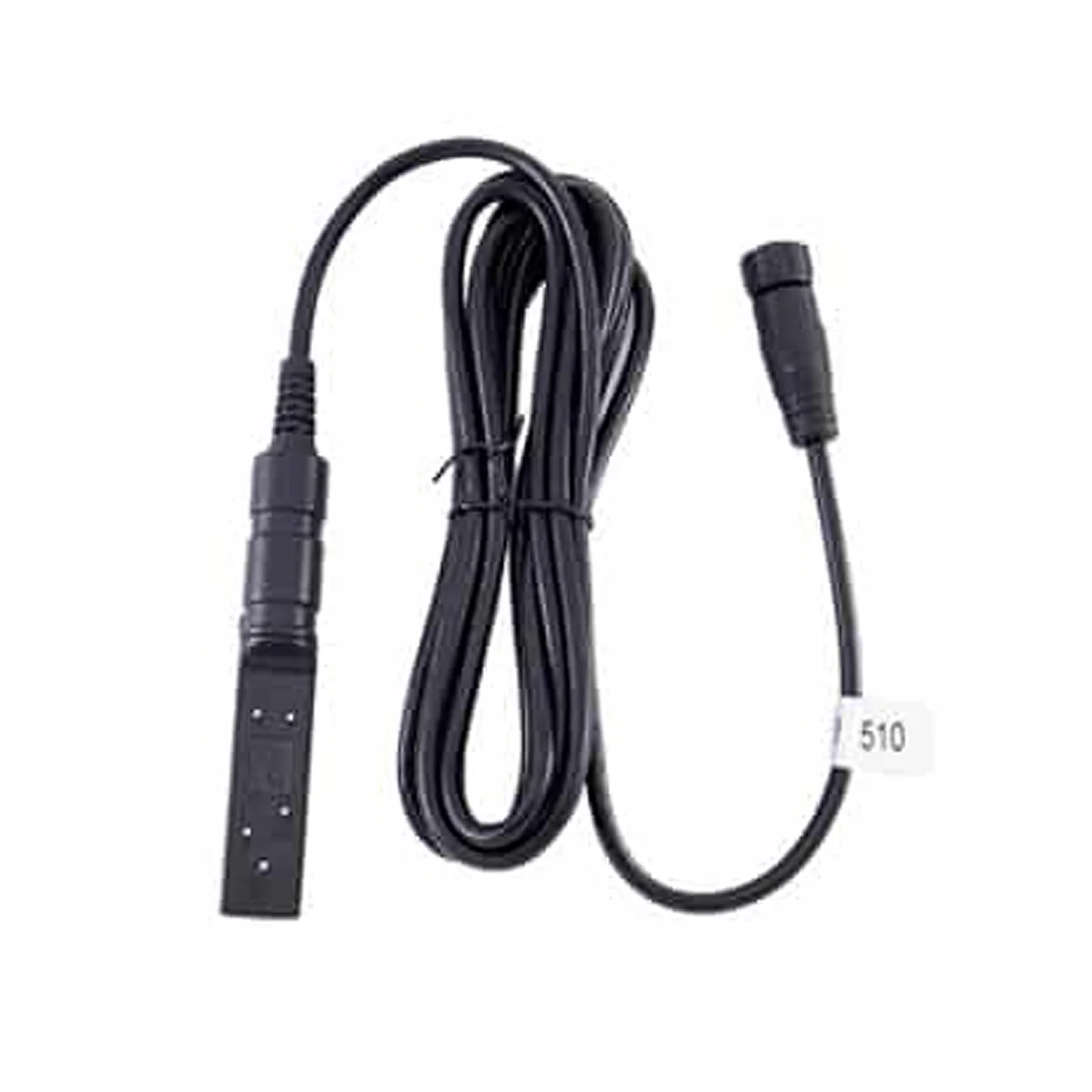

ReefATO+ ATO Sensor R35622-V4
